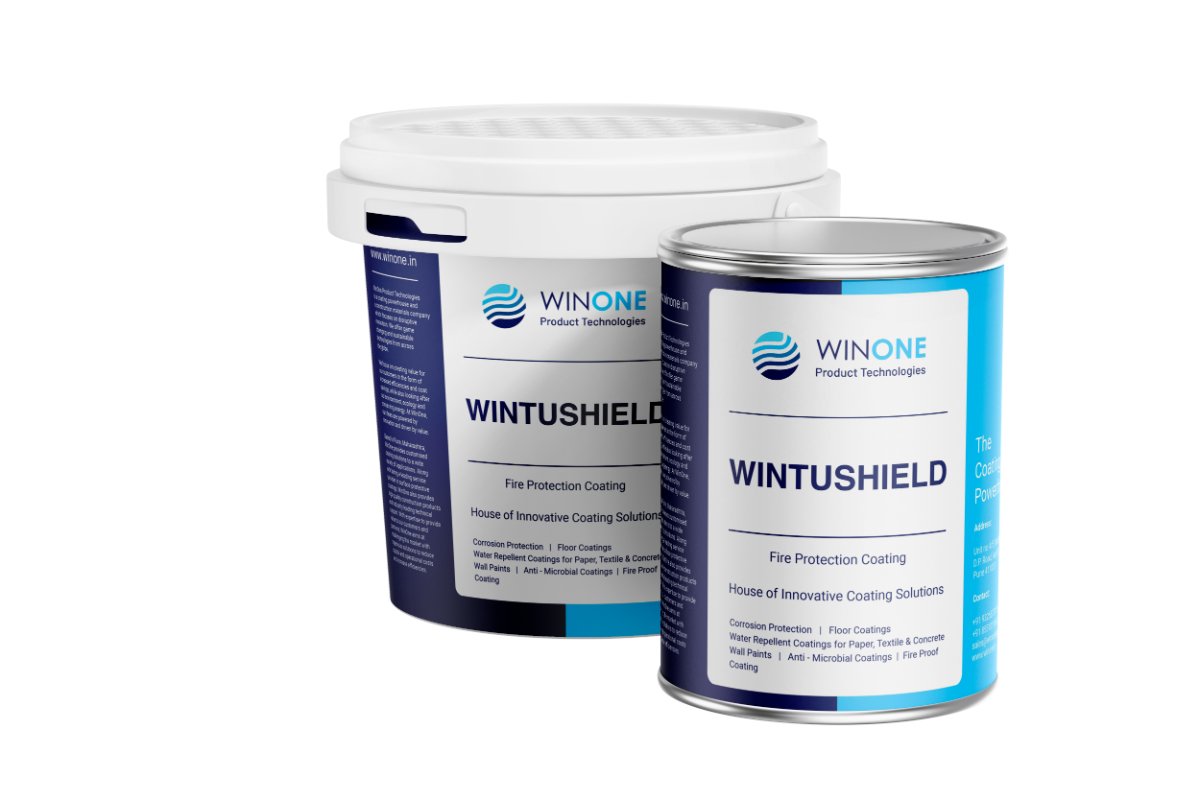

WINTUSHIELD
Non-hazardous flame/fire retardant paint, harmless to humans and the environment.

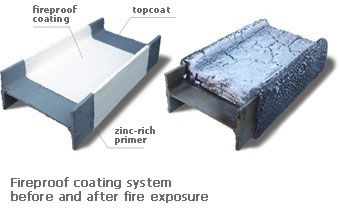

WINTUSHIELD - WINTUSHIELD is a specialized water-based, fire retardant, intumescent coating for fire protection, which can withstand temperatures more than 1000°C for 2 hours. It swells in heat, creating a flame barrier, preventing damage. It halts flames from spreading, and generates zero smoke.
Problems we solve
- 1.
Weakening of Load-Bearing Elements:
Intense heat from fires significantly weakens structural elements, compromising the overall stability of the building. - 2.
Risk of Structural Collapse:
Severe fires can lead to structural collapse, posing a grave threat to the safety of occupants and emergency responders. - 3.
Concrete Cracking:
Rapid heating during fires can cause concrete to crack, threatening the structural integrity of the building and leading to collapse. - 4.
Smoke and Soot generation:
Smoke and soot contain carbon monoxide, which causes more fatalities than actual fires due to suffocation. - 5.
Compromised Joints:
Joints and connections are most vulnerable during fire hazards. They can melt, leading to structural failure.
Features
- 1.
Fire Propagation Control:
It can contain fire to its room of origin and limit spread of flames to other areas, which prevents fires from rapidly escalating. - 2.
Flashover Prevention:
WINTUSHIELD can help prevent flashover, which is a critical point in a fire's development where the entire room ignites. - 3.
Structural Preservation:
It preserves structural integrity and delays structural collapse, providing crucial time for occupants and firefighters. - 4.
Electrical Safety:
Coating preserves circuit integrity, ensuring continued function. Minimizes short circuits, malfunctions, and safety risks. - 5.
Fire Resistance Compliance:
WINTUSHIELD's performance is in accordance with recognized standards such as BS476 and ANSI/UL263.
How to Apply
- 1.
Surface Preparation:
Ensure that the surface is cleaned and free of dust, dirt, oil, and stains. To remove Efflorescence, fungus, mold, use Winone Biowash to clean the surface. - 2.
Application method:

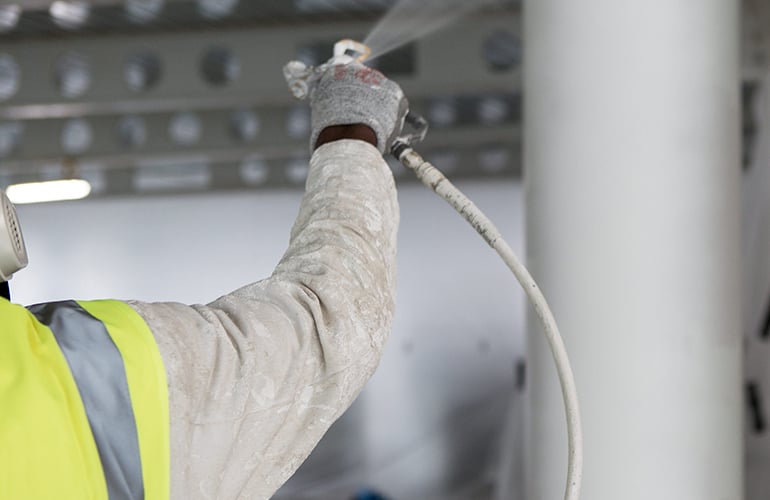

Shake well before use. A brush, roller, or pneumatic/airless spray machine can be used for application. Apply on a dry surface in multiple coats to achieve the desired dry film thickness. Overcoat time is approximately 4 hours. - 3.
Drying and Curing:
Let the surface dry and cure up to 72 hrs to achieve the best performance.
Case Studies
Phoenix Mills, Pune - Phoenix Mall
Winone provided a strong barrier of 2 hr fire rating fire protective Intumescent coating to one of the leading commercial and mall structure developers in one of the most prominent cities of India. Our Wintushield range of fire retardant coatings provide a premium aesthetic feel along with a tested barrier that swells and protects the structure when the coating comes in contact with fire. This helped achieve the desired safety ratings whereas providing additional corrosion protection to the metal structures.
