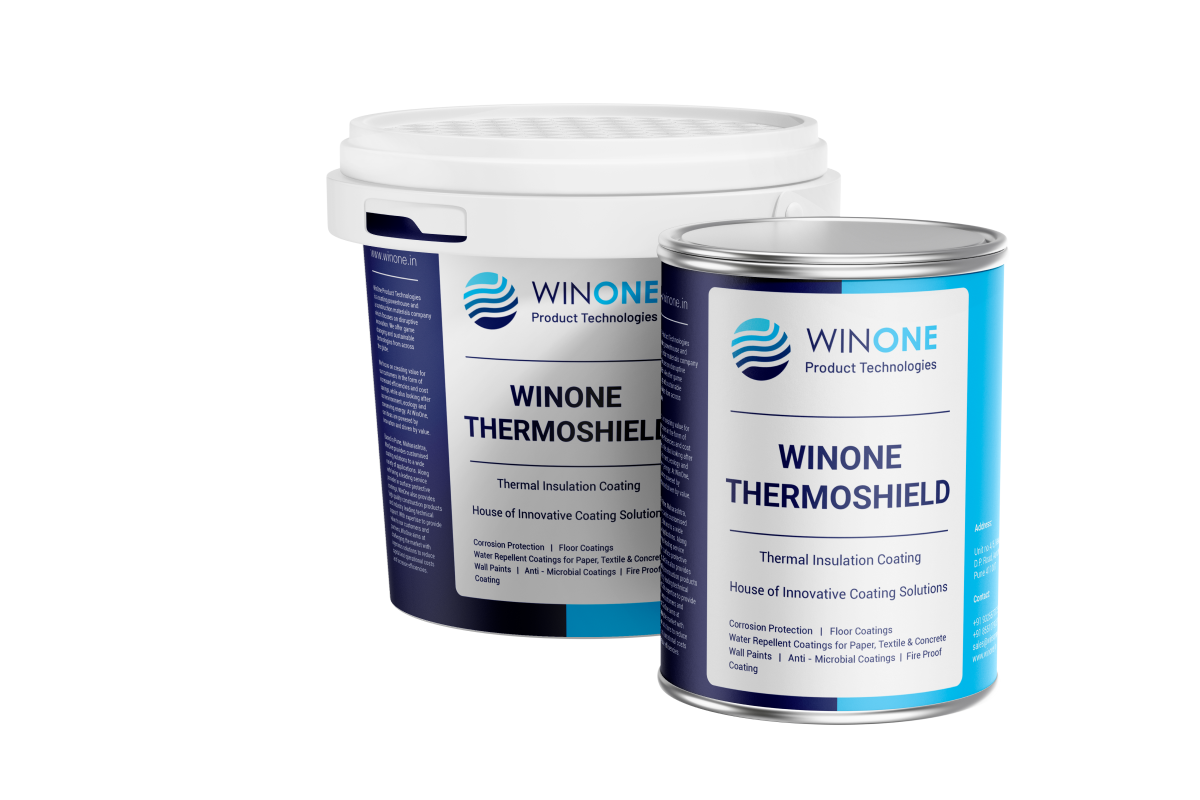

Winone Thermoshield
Water-based, Eco- friendly Thermal Insulation Coating.
Winone Thermoshield - Many companies struggle with improper insulation in intricate equipment places, but with Winone's thin single-component thermal insulation coating, you can maximize your process efficiency - which results in both insulation and corrosion protection while reducing maintenance costs. Winone Thermoshield is a liquid applied Insulation paint, to replace conventional Rockwool insulation of 50 to 60mm thickness, with 4-6 mm paint. It provides excellent protection from Corrosion under Insulation, saves space and makes maintenance easy.
Problems we solve
- 1.
Cost:
Conventional insulation materials can be expensive and prove to be a headache, making it challenging for companies to justify the investment. - 2.
Space limitations:
Limited space poses a challenge to conventional insulation solutions in finding suitable insulation materials that fit. - 3.
Maintenance:
Insulation materials require frequent maintenance, repairs, or replacements, leading to additional time and cost. - 4.
Corrosion Under Insulation:
Inadequate corrosion protection from insulation materials, and inability to identify early signs of corrosion cause equipment damage over time. - 5.
Fire safety:
Conventional Insulation materials lack fire resistance, potentially posing a fire hazard.
Features
- 1.
Improved Replacement:
A mere 2-4mm of coating can replace over 50 mm of glass wool insulation, offering a highly effective alternative. - 2.
Prohibits Corrosion:
The coating provides superior corrosion protection, guards against Corrosion Under Insulation (CUI) effectively, and is also fire-resistant. - 3.
Lower Weight-to-Effectiveness Ratio:
The coating exhibits an exceptional weight-to-effectiveness ratio, minimizing the burden on equipment while maintaining top-notch performance. - 4.
Versatility in Application:
Its adaptability allows it to be applied in almost any place, even in areas with space restrictions, ensuring comprehensive coverage. - 5.
Extensive Temperature Range:
With applicability between 5°C and 100°C, it remains efficient under varying temperature conditions. - 6.
Easy Application:
Applying it like paint to any surface is simple, as is the high-speed application process, saving you time. - 7.
Hassle-free Maintenance:
Easy to maintain, correct defects, and reapply as needed, ensuring long-term efficiency.
How to Apply
- 1.
Surface Preparation:
Ensure the surface is free from dust, dirt, oil, and grease. - 2.
First Coat:
Apply a thin layer of Winone Thermoshield to cover the entire area. This ensures a strong bond for subsequent layers. - 3.
Drying and Curing:
Allow the final layer of coating to dry for up to 24 hours to achieve complete curing.
Case Studies

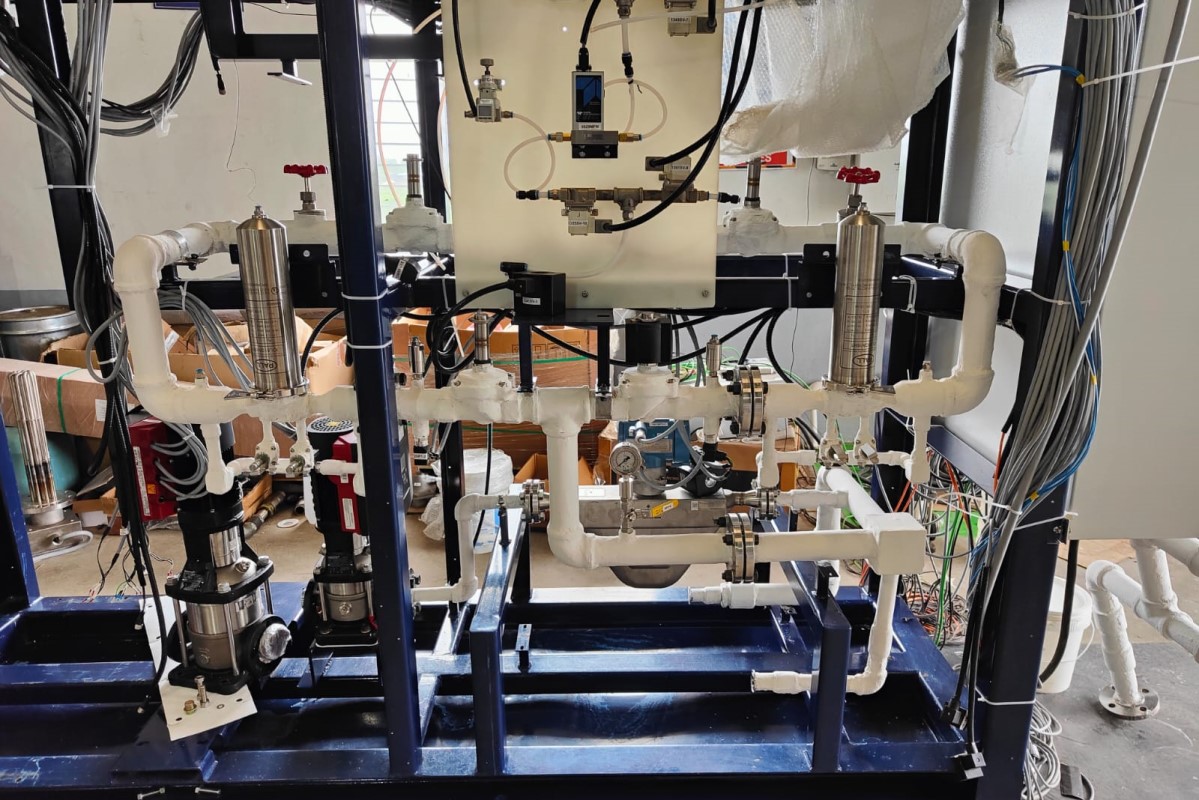

Filteration Unit - Dairy

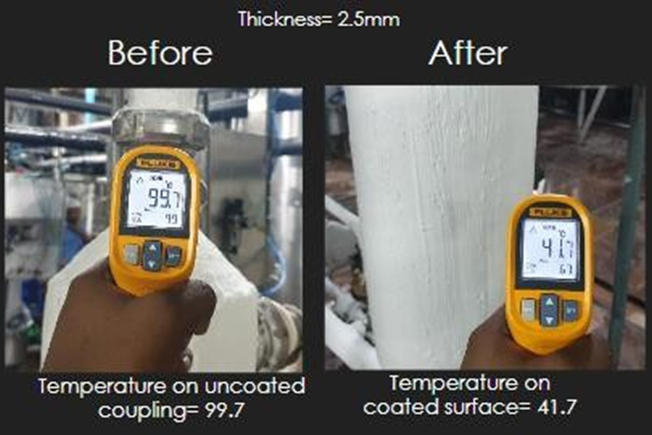

Winone Thermoshield addressed the thermal insulation challenges in a water filtration process skid of a major engineering consulting firm which was unable to execute the process with conventional rockwool insulation. Our coating provided a thin film insulation which gave ample space for multiple sensitive measuring equipment to be placed on the process skid and provided with a delta of more than 40 degrees C with just 3 mm of coating. Our coating also provided additional corrosion protection which caused ZERO downtime in over 2 years of operation. Winone demonstrated value engineering with our client experiencing significant improvements in their process with this innovative technology adoption.
